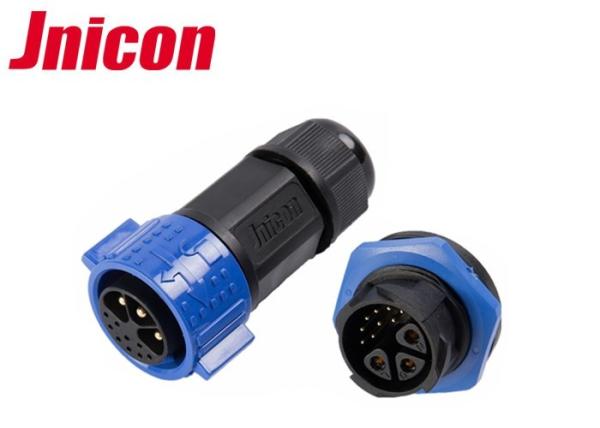

3+9 Pin IP67 Plug Socket Multi Pin Connectors Waterproof Data And Power Connector
Main features of Multi-pin 3+9 Pin Waterproof plug socket connector:
• M25 series 2-22 pins are available and for varies industrial demands. male ,female and socket are available.
• High current application safety and stable wire. 0.3mm~2.5mm² wire for 3+9 pin M25 series Push Locking waterproof male female connector.
• the current/ voltage of waterproof male female connector are 30A+5A/300V+60V. the withstanding voltage is 1500V AC.
• Operate temperature: -40°C~+105°C
• The copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
• Outdoor waterproof connector have IP67 waterproof protection rating, it works reliably in door, outdoor.
• Vibration resistance,impact resistance,stretching resistance.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively.
• OEM/ODM are accepted. cable length can customized.
The specifiction of 3+9 pins waterproof cable connector
| SPECIFICATION |
| Designation | 3+9 pin waterproof cable connector cable welding |
| Model No. | 51-109311-01 |
| Item | Specification |
| 1. Electrical characteristics |
| 1A | Contact Resistance | 10mΩ max. |
| 1B | Insulation Resistance | 10MΩ min. |
| 1C | Withstand Voltage | 1500V AC There shall be no breakdown. |
| 1D | Rating | 30A+5A 300V+60V |
| 2. Mechanical |
| 2A | Mating/Unmating force | Mating & Unmating Force: 10~30N Test data:22N,23N,25N,26N,23N |
| 2B | Life test | Mating & Unmating 500 cycles |
| 3. Material |
| 3A | Contact material Plating | copper alloy with gold plating |
| 3B | Contact material | Brass (C3604) |
| 3C | Housing material | high performance engneering plastic(PA66) |
| 4. Environmental |
| 4B | Operation temperature range: | -30℃~+80℃ |
| 4C | Preservative temperature range: | -40℃~+85℃ |
Application
► M25 series connectors could be widely used in indoor & outdoor led lighting,electricl power connection,landscape lights,underwater lights, equipments etc, have high waterproof degree--IP67.
► It can effectively resist vibration and shock, and can prevent broken connection caused by pulling cables. It is absolutely reliable and convenient to plug in very limited space.
Product detail picture
Packing and Delivering
- Packaging Details: 50pcs to a skin packing to a carton Customized packing is welcome , MOQ of printing customized box is 1000 pcs each model .
- Delivery Details: sample about 3 working days, products in 7 days after payment.
- Weight ＜100 KG , we usually transport the good by air express .
- If you have shipping agent please tell me , then we can send it to him / her.
